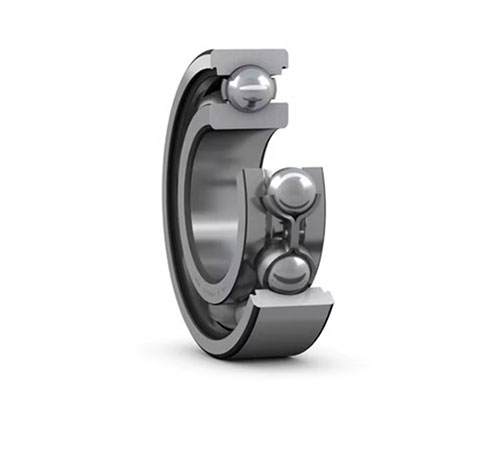

Deep groove ball bearings
Deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types.
The PSI bearing catalogue lists a large range of designs, variants and sizes of deep groove ball bearings. Beyond our catalogue offering, the PSI Explorer deep groove ball bearings are customizable to offer advantages for applications with specific performance needs.
Deep Groove Bearings – PSI
| Designation | Bore diameter | Outside diameter | Width | Basic dynamic load rating | Limiting speed |
|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [kN] | [r/min] | |
| 6201 | 12 | 32 | 10 | 7.28 | 32 000 |
| 6202 | 15 | 35 | 11 | 8.06 | 28 000 |
| 629-2Z | 9 | 26 | 8 | 4.75 | 30 000 |
| 6201-2Z | 12 | 32 | 10 | 7.28 | 26 000 |
| 6201-2Z/C3 | 12 | 32 | 10 | 7.28 | 26 000 |
| 6000-2Z | 10 | 26 | 8 | 4.75 | 34 000 |
| 6202-2Z | 15 | 35 | 11 | 8.06 | 22 000 |
| 6202-2Z/C3 | 15 | 35 | 11 | 8.06 | 22 000 |
| 6203 | 17 | 40 | 12 | 9.95 | 24 000 |
| 608-2Z/C3 | 8 | 22 | 7 | 3.45 | 38 000 |
| BB1B 42020 | 10 | 26 | 8 | 4.75 | 34 000 |
| 6001-2Z | 12 | 28 | 8 | 5.4 | 30 000 |
| 6001-2Z/C3 | 12 | 28 | 8 | 5.4 | 30 000 |
| 6000-2Z/C3 | 10 | 26 | 8 | 4.75 | 34 000 |
| 6200-2Z | 10 | 30 | 9 | 5.4 | 28 000 |
| 6002-2Z | 15 | 32 | 9 | 5.85 | 26 000 |
| 6203-2Z | 17 | 40 | 12 | 9.95 | 19 000 |
| 6203-2Z/C3 | 17 | 40 | 12 | 9.95 | 19 000 |
| 6000-2RS1 | 10 | 26 | 8 | 4.75 | 34 000 |
| 6001-2RS1 | 10 | 26 | 8 | 4.75 | 34 000 |
| 6302 | 15 | 42 | 13 | 11.9 | 24 000 |
| 6004 | 20 | 42 | 12 | 9.95 | 24 000 |
| 6002-2RS1 | 10 | 26 | 8 | 4.75 | 34 000 |
| 6003-2Z | 17 | 35 | 10 | 6.37 | 22 000 |
| 6003-2Z/C3 | 17 | 35 | 10 | 6.37 | 22 000 |
| 607-2Z | 7 | 19 | 6 | 2.34 | 43 000 |
| 6204 | 20 | 47 | 14 | 13.5 | 20 000 |
| 6304 | 20 | 52 | 15 | 16.8 | 19 000 |
| 6004-2Z | 20 | 42 | 12 | 9.95 | 19 000 |
| 6004-2Z/C3 | 20 | 42 | 12 | 9.95 | 19 000 |
| 627-2Z | 7 | 22 | 7 | 3.45 | 36 000 |
| 6204-Z | 20 | 47 | 14 | 13.5 | 20 000 |
| 6305-RS1/C | 10 | 26 | 8 | 4.75 | 34 000 |
| 6003-2RS1 | 10 | 26 | 8 | 4.75 | 34 000 |
| 609-2Z | 9 | 24 | 7 | 3.9 | 34 000 |
| 6304-Z | 20 | 52 | 15 | 16.8 | 19 000 |
| 6302-2Z | 15 | 42 | 13 | 11.9 | 19 000 |
| 6004-2RS1 | 10 | 26 | 8 | 4.75 | 34 000 |
| 6303 | 17 | 47 | 14 | 14.3 | 22 000 |
| 6005-2Z | 25 | 47 | 12 | 11.9 | 16 000 |
| 6204-2Z | 20 | 47 | 14 | 13.5 | 17 000 |
| 6204-2Z/C3 | 20 | 47 | 14 | 13.5 | 17 000 |
