Deep Groove Ball Bearing 6201 (Single row)
Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
- Simple, versatile and robust design
- Low friction
- High-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance

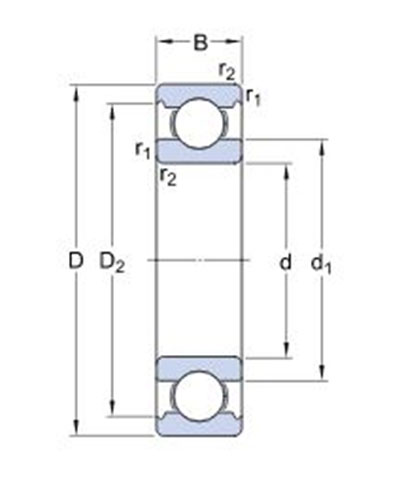

| d | 0.472 in | Bore diameter |
| tΔdmp | -7 – 0 µm | Deviation limits of mid-range bore diameter |
| D | 1.26 in | Outside diameter |
| tΔDmp | -9 – 0 µm | Deviation limits of mid-range outside diameter |
| B | 0.394 in | Width |
| tΔBs | -60 – 0 µm | Deviation limits of ring width |
| d1 | ≈0.726 in | Shoulder diameter |
| r1,2 | min.0.024 in | Chamfer dimension |
| P6 and tighter width tolerance | ISO tolerance class for dimensions |
| Bore diameter | 12 mm |
| Outside diameter | 32 mm |
| Width | 10 mm |
| Basic dynamic load rating | 7.28 kN |
| Basic static load rating | 3.1 kN |
| Reference speed | 50 000 r/min |
| Limiting speed | 32 000 r/min |
| PSI performance class | 3.1 kN |
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Matched arrangement | No |
| Radial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
