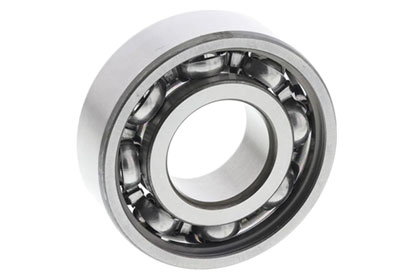

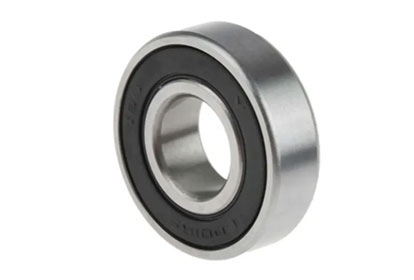

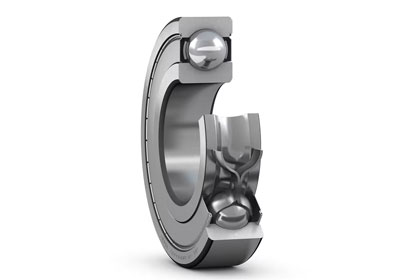

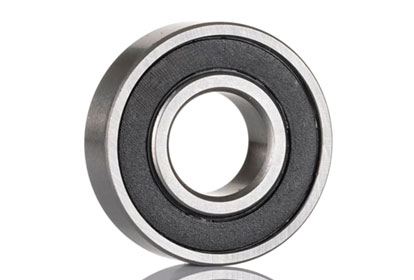

Deep Groove Ball Bearing 6202-2Z/C3 (Single row)

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
Bore diameter 15 mm
Outside diameter 35 mm
Width 11 mm
Basic dynamic load rating 8.06 kN
Basic static load rating 3.75 kN
Reference speed 43 000 r/min
Limiting speed 22 000 r/min
Filling slots Without
Number of rows 1
Locating feature, bearing outer ring None
Bore type Cylindrical
Cage Sheet metal
Matched arrangement No
Radial internal clearance C3
Material, bearing Bearing steel
Coating Without
Sealing Shield on both sides
Sealing type Non-contact
Lubricant Grease
Relubrication feature Without
