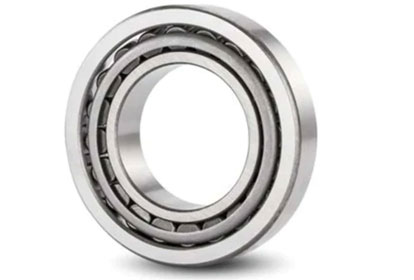

Tapered Roller Bearings 30220 (Single Row)

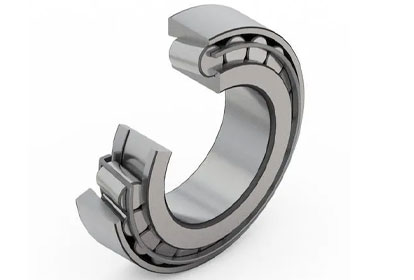

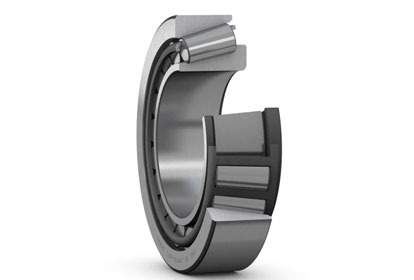

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
- High radial and axial load carrying capacity
- Accommodate axial loads in one direction
- Low friction and long service life
- Separable and interchangeable components

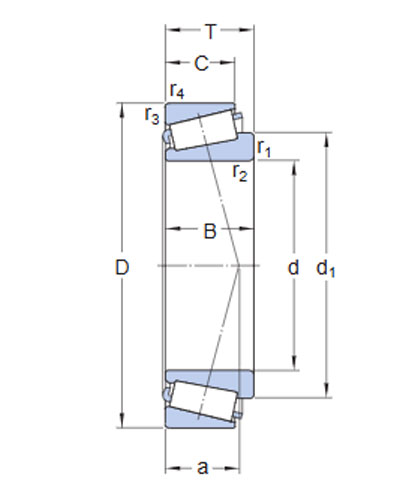

| d | 100 mm | Bore diameter |
| D | 180 mm | Outside diameter |
| T | 37 mm | Total width |
| d1 | ≈134.48 mm | Shoulder diameter of inner ring |
| B | 34 mm | Width of inner ring |
| C | 29 mm | Width of outer ring |
| r1,2 | min.3 mm | Chamfer dimension of inner ring |
| r3,4 | min.2.5 mm | Chamfer dimension of outer ring |
| a | 35.4 mm | Distance side face to pressure point |
| Bore diameter | 100 mm |
| Outside diameter | 180 mm |
| Width, total | 37 mm |
| Width, inner ring | 34 mm |
| Width, outer ring | 29 mm |
| Contact angle | 15.642 ° |
| Basic dynamic load rating | 304 kN |
| Basic static load rating | 320 kN |
| Reference speed | 3 000 r/min |
| Limiting speed | 3 600 r/min |
| Bearing part | Complete bearing |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Arrangement of contact angle (double-row bearing) | Not applicable |
| Matched arrangement | No |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
| Unit system | Metric |
