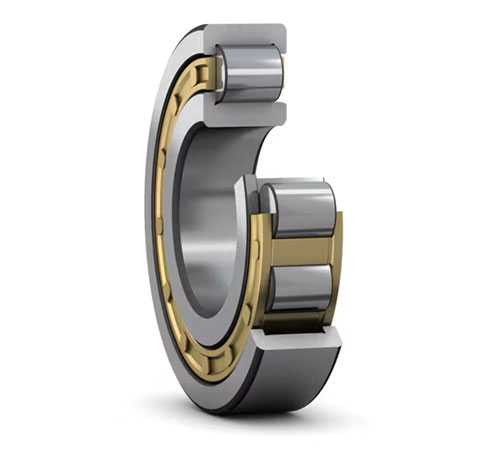

Cylindrical Roller Bearing
PSI Cylindrical roller bearings are available in a wide range of designs, series, variants and sizes. The main design differences are the number of roller rows and the inner/outer ring flanges as well as cage designs and materials.
The bearings can meet the challenges of applications faced with heavy radial loads and high speeds. Accommodating axial displacement (except for bearings with flanges on both the inner and outer rings), they offer high stiffness, low friction and long service life.
Cylindrical roller bearings are also available in sealed or split designs. In sealed bearings, the rollers are protected from contaminants, water and dust, while providing lubricant retention and contaminant exclusion. This provides lower friction and longer service life. Split bearings are intended primarily for bearing arrangements which are difficult to access, such as crank shafts, where they simplify maintenance and replacements.
Cylindrical Roller Bearings – PSI
| Designation | Bore diameter | Outside diameter | Width | Basic dynamic load rating | Limiting speed |
|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [kN] | [r/min] | |
| NU 204 ECP | 20 | 47 | 14 | 28.5 | 19 000 |
| NU 205 ECP | 25 | 52 | 15 | 32.5 | 16 000 |
| NJ 204 ECP | 20 | 47 | 14 | 28.5 | 19 000 |
| NU 206 ECP | 30 | 62 | 16 | 44 | 14 000 |
| NJ 304 ECP | 20 | 52 | 15 | 35.5 | 18 000 |
| NJ 206 ECP | 30 | 62 | 16 | 44 | 14 000 |
| NJ 305 ECP | 25 | 62 | 17 | 46.5 | 15 000 |
| NU 2204 ECP | 20 | 47 | 18 | 34.5 | 19 000 |
| NU 305 ECP | 25 | 62 | 17 | 46.5 | 15 000 |
| NU 207 ECP | 35 | 72 | 17 | 56 | 12 000 |
| NU 2205 ECP | 25 | 52 | 18 | 39 | 16 000 |
| NU 208 ECP | 40 | 80 | 18 | 62 | 11 000 |
| NUP 205 ECP | 25 | 52 | 15 | 32.5 | 16 000 |
| NJ 207 ECP | 35 | 72 | 17 | 56 | 12 000 |
| NU 307 ECP | 35 | 80 | 21 | 75 | 11 000 |
| NU 305 ECJ | 25 | 62 | 17 | 46.5 | 15 000 |
| NJ 2206 ECP | 30 | 62 | 20 | 55 | 14 000 |
| NU 209 ECP | 45 | 85 | 19 | 69.5 | 9 500 |
| NJ 306 ECP | 30 | 72 | 19 | 58.5 | 12 000 |
| NU 2207 ECP | 35 | 72 | 23 | 69.5 | 12 000 |
| NU 308 ECP | 40 | 90 | 23 | 93 | 9 500 |
| NU 210 ECP | 50 | 90 | 20 | 73.5 | 9 000 |
| N 305 ECP | 25 | 62 | 17 | 46.5 | 15 000 |
| NU 207 ECKP/C3 | 35 | 72 | 17 | 56 | 12 000 |
| NU 308 ECJ | 40 | 90 | 23 | 93 | 9 500 |
