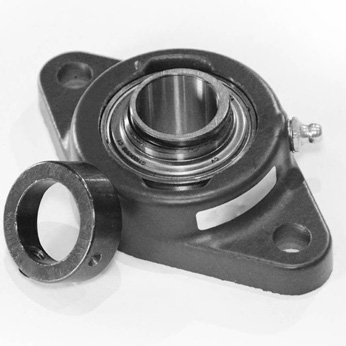

Two-Bolt Flanged Mounted Bearings Eccentric Locking Collar LFST 1/2
| Series | Light-Duty |
| Shaft Size d | 1/2 in |
| Bearing Type | Ball Bearing |
| Bearing Number | RAL008NPP |
| Collar No. | LS008K |
| Housing Construction | Two-Bolt Flange |

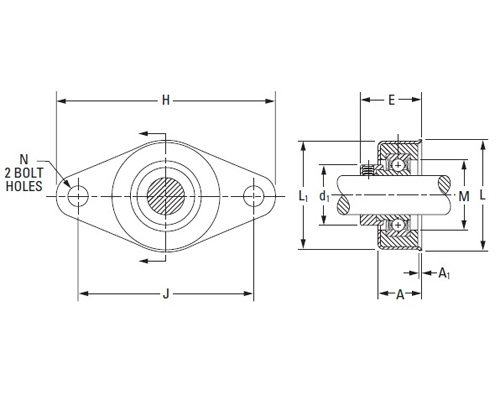

| Total Length H | 114.3 mm 4.5 in |
| Total Height L | 57.2 mm 2.25 in |
| Housing Width A | 23 mm 0.906 in |
| Bolt Hole Spacing J | 92.1 mm 3.625 in |
| Bolt Hole Size N | 9.5 mm 0.375 in |
| Flange Thickness A1 | 1.52 mm 0.06 in |
| Dimension B1 | 23.8 mm 0.938 in |
| Dimension E | 31 mm 1.219 in |
| Dimension d1 | 25.4 mm 1 in |
| Dimension M | 29.4 mm 1.156 in |
| Dimension L1 | 55.6 mm 2.188 in |
| Static Load Rating | 3000 N 680 lbf |
| Dynamic Load Rating | 7500 N 1700 lbf |
| Housing Radial Load Rating | 880 N 200 lbf |
