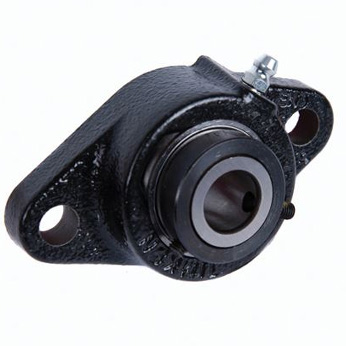

Two-Bolt Flanged Mounted Bearings Concentric Locking Collar RCJTC 1/2
| Series | Industrial |
| Shaft Size d | 5/8 in |
| Bearing Type | Ball Bearing |
| Bearing Number | GC1010KRRB |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Flange |
| Alternate Part Name | RCJTC 5/8 |

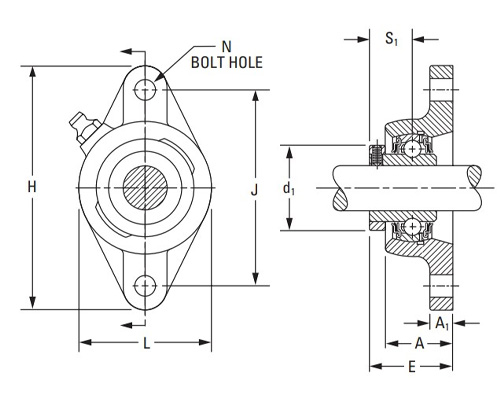

| Total Length H | 98.4 mm 3.874 in |
| Total Height L | 60.3 mm 2.375 in |
| Housing Width A | 23.6 mm 0.929 in |
| Bolt Hole Spacing J | 76.2 mm 3 in |
| Bolt Hole Size N | 9.9 mm 0.39 in |
| Flange Thickness A1 | 8.3 mm 0.328 in |
| Dimension B1 | 26.59 mm 1.047 in |
| Dimension S1 | 15.5 mm 0.609 in |
| Dimension E | 32.7 mm 1.287 in |
| Dimension d1 | 34.1 mm 0.344 in |
| Static Load Rating | 4700 N 1060 lbf |
| Dynamic Load Rating | 10600 N 2360 lbf |
