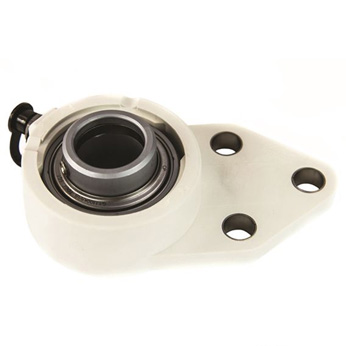

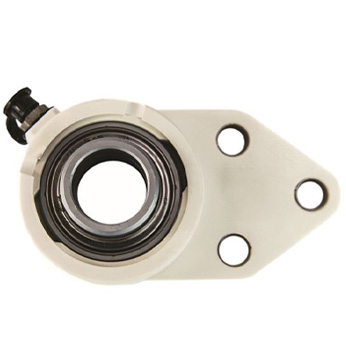

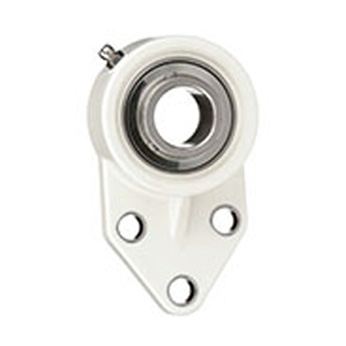

Three-Bolt Flanged Mounted Bearings Setscrew Locking YFB 25 PT SGT
| Series | Industrial |
| Shaft Size d | 25 mm |
| Bearing Type | Ball Bearing |
| Bearing Number | GYE25KRRB TDCF SGT |
| Seal Type | Shroud Seal |
| Housing Construction | Three-Bolt Flange Bracket |

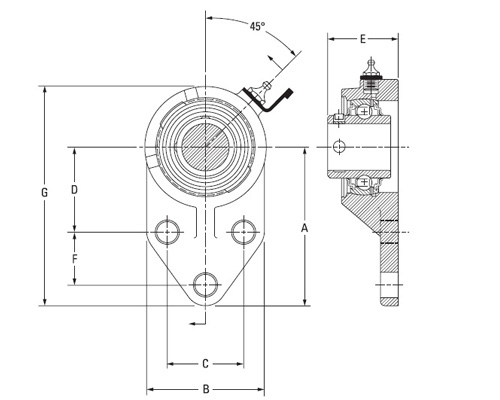

| Dimension A | 85.73 mm 3.375 in |
| Dimension B | 63.5 mm 2.5 in |
| Dimension C | 41.28 mm 1.625 in |
| Dimension D | 46.04 mm 1.813 in |
| Dimension E | 38.1 mm 1.5 in |
| Dimension F | 28.58 mm 1.125 in |
| Dimension G | 118.66 mm 4.672 in |
| Static Load Rating | 7800 N 1750 lbf |
| Dynamic Load Rating | 15500 N 3490 lbf |
