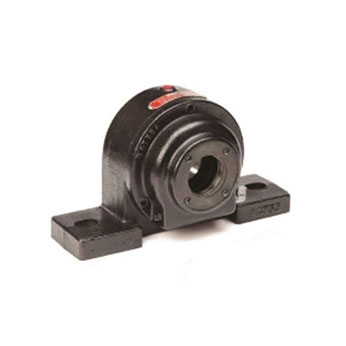

Pillow Block Mounted Bearings SAOL Heavy Series SAOL 1 7/16
| Series | Heavy |
| Shaft Size d | 1 7/16 in |
| Bearing Type | Ball Bearing |
| Bearing Number | SMN107KS |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | SAOL 1 7/16 |

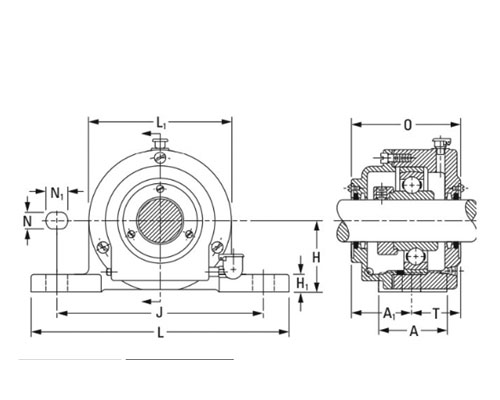

| Dimension A1 | 69.1 mm 2.719 in |
| Base to Center Height H | 69.8 mm 2.75 in |
| Total Length L | 269.9 mm 10-5/8 in |
| Dimension L1 | 120.6 mm 4.75 in |
| Total Width A | 69.8 mm 2.75 in |
| Bolt Hole Spacing J | 209.6 mm 8.25 in |
| Bolt Hole Width N | 19 mm 0.75 in |
| Bolt Hole Length N1 | 25.4 mm 1 in |
| Foot Height H1 | 20.6 mm 0.813 in |
| Dimension d1 | 55.6 mm 2.188 in |
| Dimension B1 | 51.6 mm 2.031 in |
| Dimension T | 42.1 mm 1.656 in |
| Static Load Rating | 21200 N 4750 lbf |
| Dynamic Load Rating | 40500 N 9150 lbf |
