Pillow Block Mounted Bearings SAOL Heavy Series SAL 1 3/16
| Series | Heavy |
| Shaft Size d | 1 3/16 in |
| Bearing Type | Ball Bearing |
| Bearing Number | SMN103KS |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | SAOL 1 3/16 |

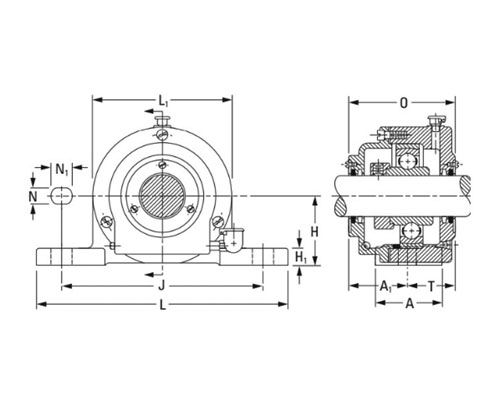

| Dimension A1 | 60.3 mm 2.375 in |
| Base to Center Height H | 60.33 mm 2.375 in |
| Total Length L | 210 mm 8-1/4 in |
| Dimension L1 | 111.1 mm 4.375 in |
| Total Width A | 60.3 mm 2.375 in |
| Bolt Hole Spacing J | 168.3 mm 6.625 in |
| Bolt Hole Width N | 15.9 mm 0.625 in |
| Bolt Hole Length N1 | 22.2 mm 0.875 in |
| Foot Height H1 | 17.5 mm 0.688 in |
| Dimension d1 | 49.2 mm 1.938 in |
| Dimension B1 | 50 mm 1.969 in |
| Dimension T | 42.9 mm 1.688 in |
| Static Load Rating | 15600 N 3550 lbf |
| Dynamic Load Rating | 33500 N 7550 lbf |
