Pillow Block Mounted Bearings SAOL Heavy Series SAOL 1 11/16
| Series | Heavy |
| Shaft Size d | 1 11/16 in |
| Bearing Type | Ball Bearing |
| Bearing Number | SMN108KS |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | SAOL 1 1/2 |

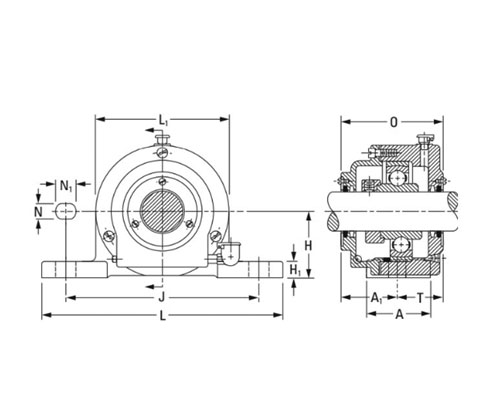

| Dimension A1 | 74.6 mm 2.938 in |
| Base to Center Height H | 79.4 mm 3-1/8 in |
| Total Length L | 288.9 mm 11.375 in |
| Dimension L1 | 146 mm 5.75 in |
| Total Width A | 79.4 mm 3.125 in |
| Bolt Hole Spacing J | 228.6 mm 9 in |
| Bolt Hole Width N | 19 mm 0.75 in |
| Bolt Hole Length N1 | 25.4 mm 1 in |
| Foot Height H1 | 20.6 mm 0.813 in |
| Dimension d1 | 63.5 mm 2.5 in |
| Dimension B1 | 57.2 mm 2.2500 in |
| Dimension T | 49.2 mm 1.938 in |
| Static Load Rating | 26100 N 5850 lbf |
| Dynamic Load Rating | 49000 N 11000 lbf |
