Pillow Block Mounted Bearings SAOL Heavy Series SAL 1 7/16
| Series | Industrial |
| Shaft Size d | 1 7/16 in |
| Bearing Type | Ball Bearing |
| Bearing Number | SM1107KS |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | SAL 1 7/16 |

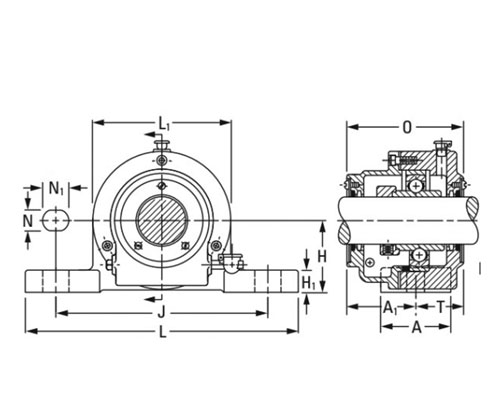

| Dimension A1 | 62.7 mm 2.469 in |
| Base to Center Height H | 60.33 mm 2.375 in |
| Total Length L | 210 mm 8-1/4 in |
| Dimension L1 | 108 mm 4.25 in |
| Total Width A | 60.3 mm 2.375 in |
| Bolt Hole Spacing J | 158.8 mm 6.25 in |
| Bolt Hole Width N | 19 mm 0.75 in |
| Bolt Hole Length N1 | 25.4 mm 1 in |
| Foot Height H1 | 19 mm 0.75 in |
| Dimension d1 | 54.4 mm 2.125 in |
| Dimension B1 | 51.2 mm 2.016 in |
| Dimension T | 42.1 mm 1.656 in |
| Static Load Rating | 11500 N 3400 lbf |
| Dynamic Load Rating | 28500 N 6400 lbf |
