Pillow Block Mounted Bearings Eccentric Locking Collar RSA 1/2
| Series | Industrial |
| Shaft Size d | 1/2 in |
| Bearing Type | Ball Bearing |
| Bearing Number | G1008KRRB |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | RSA 1/2 |

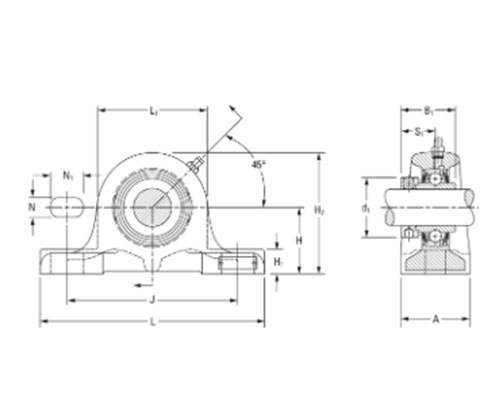

| Base to Center Height H | 31.75 mm 1.25 in |
| Total Length L | 122.2 mm 4.811 in |
| Total Width A | 31.8 mm 1.252 in |
| Bolt Hole Spacing J | 96.8 mm 3.811 in |
| Bolt Hole Width N | 11.1 mm 0.437 in |
| Bolt Hole Length N1 | 14.3 mm 0.563 in |
| Foot Height H1 | 12.7 |
| Total Height H2 | 58.7 mm 2.311 in |
| Dimension d1 | 28.6 mm 1.126 in |
| Dimension B1 | 37.3 mm 1.469 in |
| Dimension S1 | 23.4 mm 0.921 in |
| Dimension T | 15.9 mm 0.626 in |
| Static Load Rating | 4700 N 1070 lbf |
| Dynamic Load Rating | 10700 N 2380 lbf |
