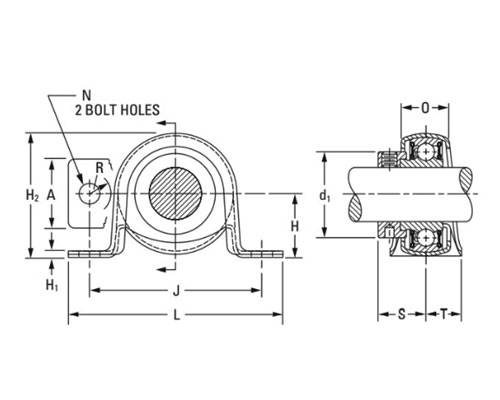

Pillow Block Mounted Bearings Eccentric Locking Collar PB 1/2
| Series | Light-Duty |
| Shaft Size d | 1/2 in |
| Bearing Type | Ball Bearing |
| Bearing Number | RA008RRB |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | PB 1/2 |
| Base to Center Height H | 22.2 mm 0.875 in |
| Total Length L | 92.1 mm 3.625 in |
| Total Width A | 25.4 mm 1 in |
| Bolt Hole Spacing J | 8.7 mm 0.344 in |
| Bolt Hole Length N | 2.54 mm 0.1 in |
| Foot Height H1 | 2.54 mm 0.1 in |
| Total Height H2 | 44.4 mm 1.75 in |
| Dimension d1 | 28.6 mm 1.126 in |
| Dimension B1 | 28.6 mm 1.126 in |
| Dimension S1 | 22.1 mm 0.87 in |
| Dimension S1 | 12.7 mm 0.5 in |
| Static Load Rating | 4700 N 1070 lbf |
| Dynamic Load Rating | 10700 N 2380 lbf |
