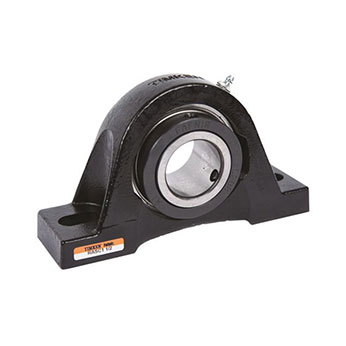

Pillow Block Mounted Bearings Concentric Locking Collar RASC 5/8
| Series | Industrial |
| Shaft Size d | 5/8 in |
| Bearing Type | Ball Bearing |
| Bearing Number | GC1010KRRB |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | RASC 5/8 |

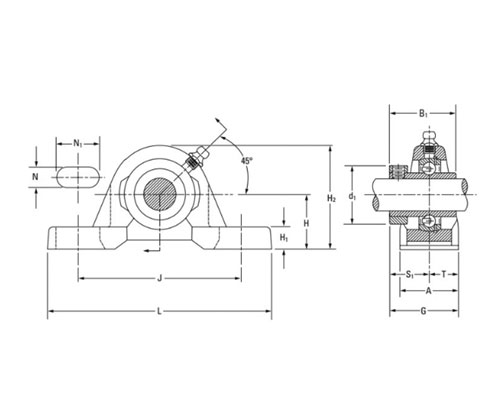

| Base to Center Height H | 30.2 mm 1.188 in |
| Total Length L | 123.8 mm 4.875 in |
| Total Width A | 30.2 mm 1.188 in |
| Bolt Hole Spacing J | 92.1 mm 3.625 in |
| Bolt Hole Width N | 11.1 mm 0.438 in |
| Bolt Hole Length N1 | 22.2 mm 0.874 in |
| Foot Height H1 | 11.9 mm 0.469 in |
| Total Height H2 | 56.4 mm 2.219 in |
| Dimension d1 | 34.1 mm 0.344 in |
| Dimension B1 | 26.59 mm 1.047 in |
| Dimension S1 | 15.5 mm 0.609 in |
| Dimension T | 15.1 mm 0.594 in |
| Static Load Rating | 4700 N 1060 lbf |
| Dynamic Load Rating | 10600 N 2360 lbf |
