Pillow Block Mounted Bearings Concentric Locking Collar RASC 3/4
| Series | Industrial |
| Shaft Size d | 3/4 in |
| Bearing Type | Ball Bearing |
| Bearing Number | GC1012KRRB |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | RASC 3/4 |

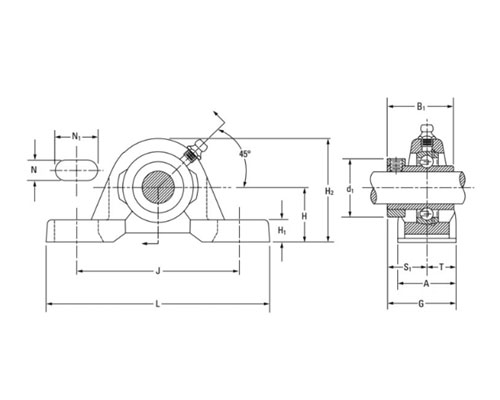

| Base to Center Height H | 33.3 mm 1.313 in |
| Total Length L | 127 mm 5 in |
| Total Width A | 33.3 mm 1.311 in |
| Bolt Hole Spacing J | 96 mm 0.781 in |
| Bolt Hole Width N | 11.1 mm 0.438 in |
| Bolt Hole Length N1 | 19.8 mm 0.781 in |
| Foot Height H1 | 15.1 mm 0.594 in |
| Total Height H2 | 65.9 mm 0.594 in |
| Dimension d1 | 38.1 mm 1.5 in |
| Dimension B1 | 30.96 mm 1.219 in |
| Dimension S1 | 18.7 mm 0.734 in |
| Dimension T | 16.7 mm 0.656 in |
| Static Load Rating | 6200 N 1400 lbf |
| Dynamic Load Rating | 14300 N 3200 lbf |
