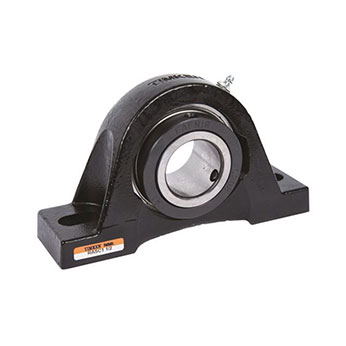

Pillow Block Mounted Bearings Concentric Locking Collar RASC 1
| Series | Industrial |
| Shaft Size d | 1 in |
| Bearing Type | Ball Bearing |
| Bearing Number | GC1100KRRB |
| Seal Type | Shroud Seal |
| Housing Construction | Two-Bolt Pillow Block |
| Alternate Part Name | RASC 1 |

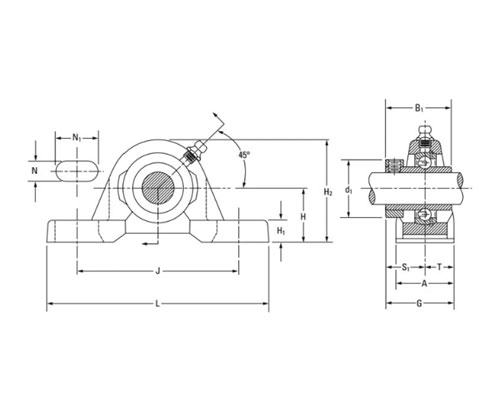

| Base to Center Height H | 36.5 mm 1.438 in |
| Total Length L | 139.7 mm 5.5 in |
| Total Width A | 37.3 mm 1.469 in |
| Bolt Hole Spacing J | 104.8 mm 4 1/8 in |
| Bolt Hole Width N | 11.1 mm 0.438 in |
| Bolt Hole Length N1 | 20.2 mm 0.813 in |
| Foot Height H1 | 15.1 mm 0.594 in |
| Total Height H2 | 73 mm 0.875 in |
| Dimension d1 | 44.4 mm 1.75 in |
| Dimension B1 | 34.13 mm 1.344 in |
| Dimension S1 | 20.2 mm 0.797 in |
| Dimension T | 18.7 mm 0.734 in |
| Static Load Rating | 7700 N 1730 lbf |
| Dynamic Load Rating | 15800 N 3550 lbf |
