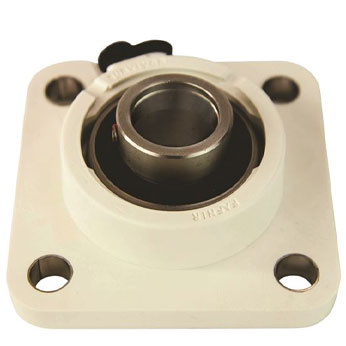

Four-Bolt Flanged Mounted Bearings Setscrew Locking YCJ 20 PT SGT
| Series | Industrial |
| Shaft Size d | 20 mm |
| Bearing Number | GYE20KRRB TDCF |
| Seal Type | Shroud Seal |
| Housing Construction | Four-Bolt Square Flange |
| Alternate Part Name | YCJ 20 PT |
| Total Length L | 85.7 mm 3.374 in |
| Housing Width A | 27.8 mm 1.094 in |
| Bolt Hole Spacing | 63.5 mm 2.5 in |
| Bolt Hole Size N | 10 mm 0.394 in |
| Flange Thickness A1 | 11.1 mm 0.437 in |
| Center of Bearing from Housing End A2 | 19.3 mm 0.76 in |
| Inside Ring Width B | 31.8 mm 1.252 in |
| Dimension S1 | 19.1 mm 0.752 in |
| Dimension D | 60.3 mm 2.374 in |
| Dimension E | 38.4 mm 1.512 in |
| Dimension F | 27.56 mm 1.085 in |
| Bolt Size | M10 |
| Static Load Rating | 6500 N 1460 lbf |
| Dynamic Load Rating | 14200 N 3190 lbf |
